VU21993 - Secure a networked personal computer Assessment Task 3

Install and enable the Web server role

• Install updates

Empty the c:\inetpub\wwwroot folder and Import the data from Canvas(ACME_Website.zip)

Test it by opening Explorer and browsing to http://localhost (Screenshot 6)

When complete, back up your VM image using VMWare’s Export feature (screenshot 7)

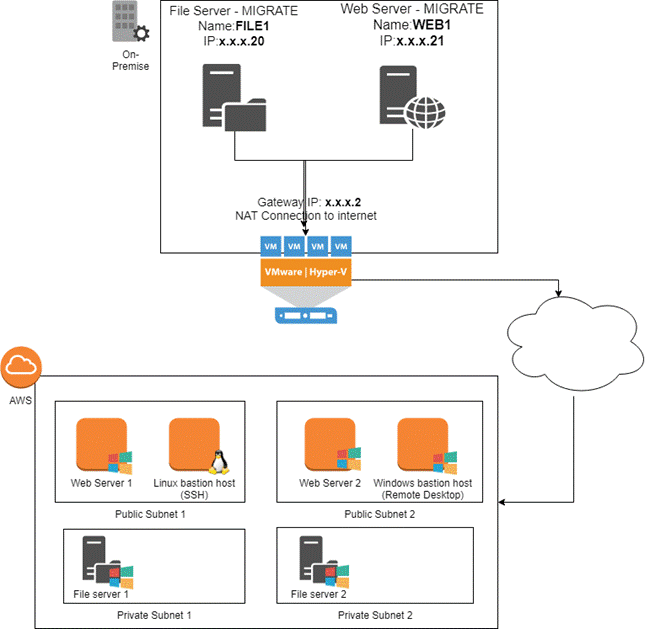

Phase 2 : Create the secure cloud environment (AWS Cloud)

Networking requirements:

Create a network with two public subnets and two private subnets (Screenshot 8)

o Public subnets should be located in different Availability Zones (same for private subnets)

Network Access Control Lists must be used to enforce these subnet rules (Screenshot 9 and 10):

o Public subnet

Web traffic: allowed from anywhere into the public subnet

All servers are denied from sending SMTP traffic outbound

o Private subnet:

SSH/Remote Desktop traffic is only authorised to hosts in this subnet from Linux and Windows bastion hosts

all traffic is allowed between private subnet 1 and 2

General instance requirements:

All instances in a private subnet shouldn’t have a public IP address

All instances should be named descriptively, in AWS and in the Operating System
(How to rename Linux hosts: https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/set-hostname.html )

Bastion Hosts (allows remote access to internal AWS network)

SSH/Remote Desktop traffic: only your IP is allowed to Linux/Windows bastion hosts
(e.g. if you are using a Swinburne PC, only that PC is allowed to connect to the bastion hosts)

Linux bastion host should use the Amazon Linux 2 AMI (t2.micro)

o Install ClamAV in command line mode (no GUI)

• Install all security updates

Windows Servers (two File servers and two Web servers)

Hosts should be based on a Windows Server 2019 Base AMI (t2.small)

o If you stop your instances, their public IPs could change (private IPs won’t) – watch for this.
For example: if you stop your bastion host and start it at home, the public IP will change

o Do not change any IP addresses for AWS resources - leave them dynamic

Only install the Windows Roles required (don’t install unnecessary roles on file/web server)

When finished creating and testing instances, go back and take several screenshots (#11-16) to show details for the instances, hostname/IPs, security groups, testing the web site/file server, etc.

Phase 3 : Preventative maintenance and troubleshooting

On the Linux and Windows bastion instances:

Check free disk space and free RAM (hint: look up df and free command in Linux) (Screenshot 17)

Perform a virus scan (screenshot 18)

• Use the Event Log or /var/log/message to record one of the warnings/errors found (screenshot 19)

Test communication by having the Linux bastion host ping Web server 1, and the Windows bastion host ping Web server 2? (screenshot 20)

Follow up questions

1. Describe the different security features, principles, and mechanisms you used to secure each layer in your cloud infrastructure:

VPC layer:
Instance layer:
OS layer:
Application layer:

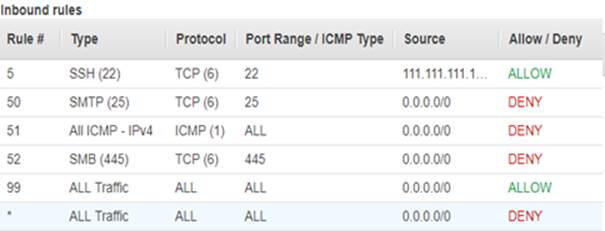

2. Review this inbound Network Access Control List:

Answer the following questions:

o Can hosts in this subnet be pinged?

o Can my pc (111.111.111.111) SSH into hosts in this subnet?

o Can my laptop (2.2.2.2) SSH into hosts in this subnet?

3. This company is based 500km away from any town and no wired (fibre/cable/ADSL) infrastructure exists. What internet/NBN connection types are available to them?

4. Use the NBN address checker to identify which NBN connection technology is being implemented at 121 High street in either: Kew, Berwick, or Doncaster.
