{`ITNE2003
Install, Configure, Operate and Troubleshoot Medium-Sized Networks
Lab Tutorial – 5 of Lesson - 5
Victorian Institute of technology
`}

Task Assignment

IP Network to be subnetted: 192.168.10.0/24

• HQ: 50 PCs
• Branch A: 20 PCs

Network Address Plan

Address allocation map

Router interface description table

This table helps network engineers to quickly identify the routing direction of each interface in a complex network environment.

Network Topology

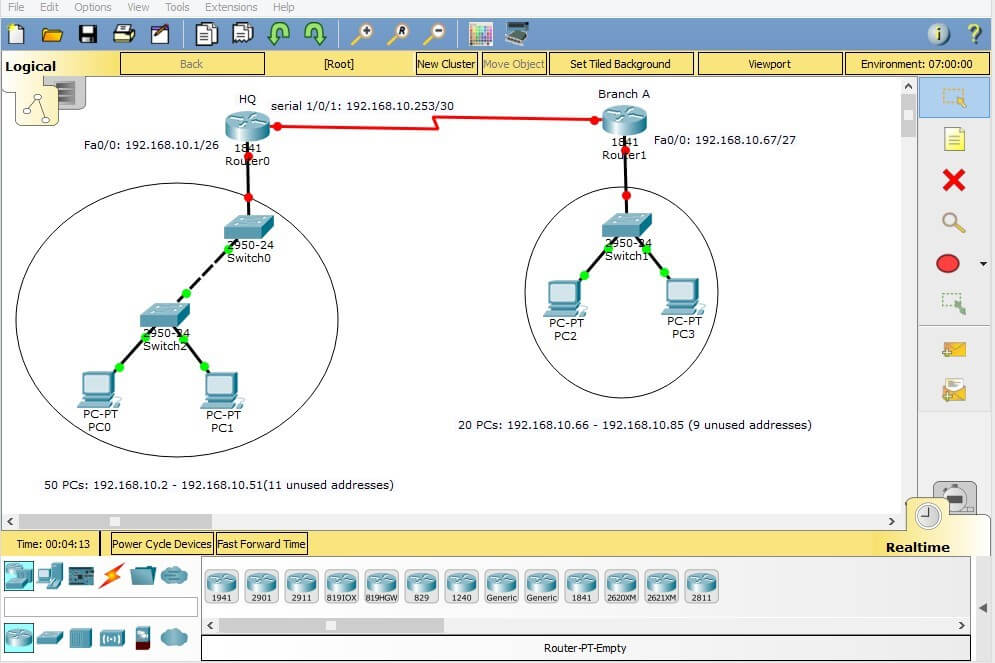

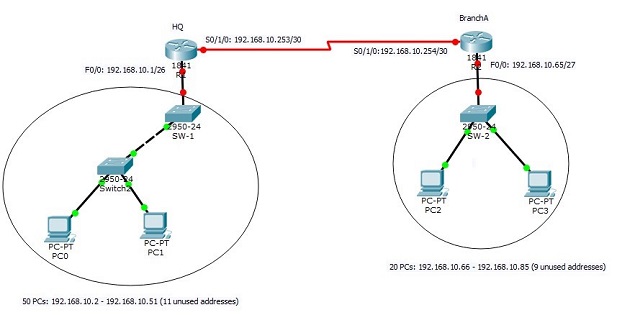

Before we start to configure the above network, we need to create the topology in our Packet Tracer simulation tool. Based on the above table we can build our network as follows:

Configuration

Router1 Configuration

Hostname

Interface Configuration

As our topology indicates, R1 has two connected interfaces: FastEthernet 0/0 and Serial 0/1/0. It also has FastEthernet 0/1 that is unused in this scenario. Here is how we configure these interfaces.

FastEthernet 0/0

FastEthernet0/1

Interface FastEthernet 0/1 is unused in this scenario, so it's better to shut down the interface. In real world, shutting down unused interfaces helps having better security in network.

Serial 0/1/0

Interface Serial 0/1/0 in connected to “Branch A” router and it needs an IP address from

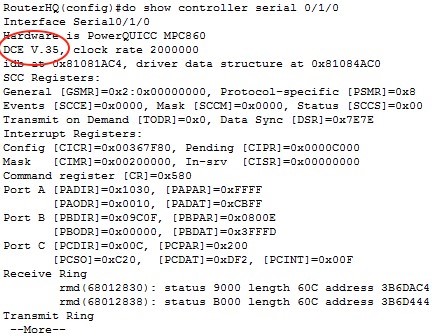

192.168.10.253/30 subnet to be operational. We also need to check if this interface is DCE/DTE. As discussed in previous assignments, for DCE interfaces “Clock rate” should be configured on router.

And the configuration for serial 0/1/0 would be:

Router 1 access protection

Save Configuration

Router2 Configuration

Interface Configuration

FastEthernet 0/0

FastEthernet0/1

Serial 0/1/0

As you can see from the output of “show controller” command on RouterBA, serial 0/1/0 on that router is DTE and there is no need to set clock rate on it.

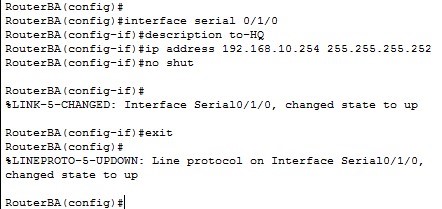

Following figure shows serial 0/1/0 configuration on RouterBA:

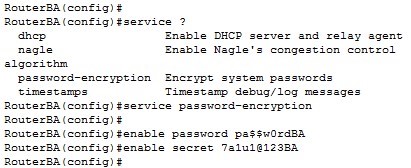

Router 2 access protection

Save configurations

Finally, we save the running configuration to NVRAM so routers can load the configuration automatically next time when power on.

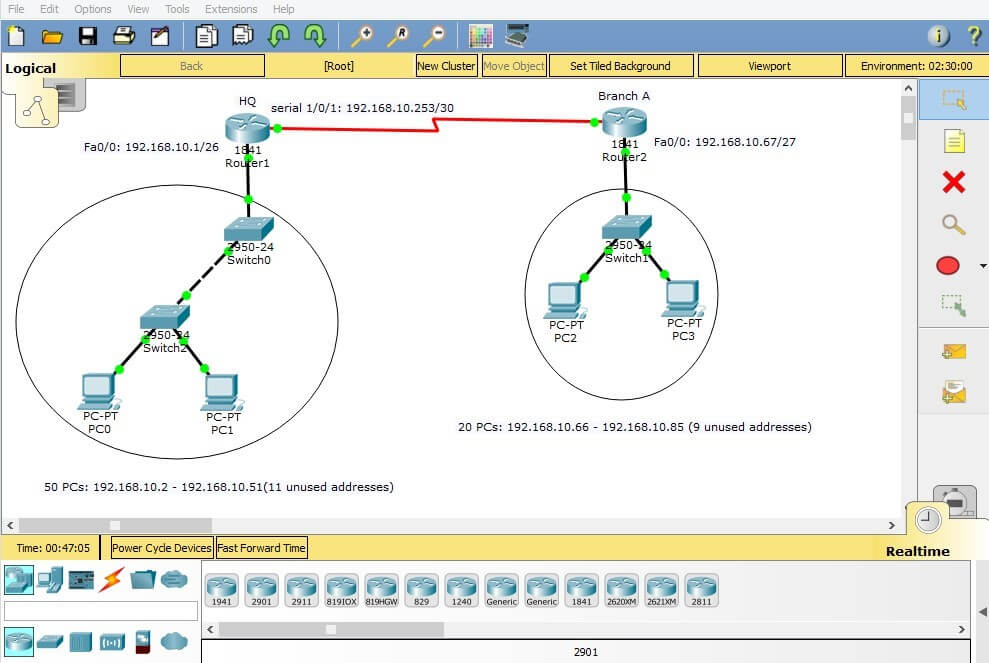

After you have successfully configured the two router interfaces, the connection between the interfaces are established and shown in green colour.
